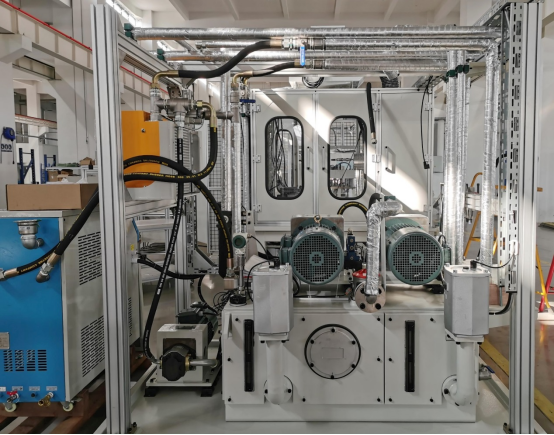

The equipment body mainly includes the body frame components, testing fixtures, equipment cover components, internal oil tank components of the bench (oil pump suction oil tank), dirty oil tank (recycling test oil inside the bench, including circulating filtration components), and hydraulic station; The testing fixture is used for positioning and clamping the oil pump, which includes the inlet and outlet ports of the oil pump and servo drive motor components; The hydraulic cabinet includes an oil storage tank, an oil tank heating system, a filtration system, and pressure and flow acquisition components.
·The target parameters can be time controlled, with a controlled response time of less than 200ms;
·The automatic data saving and playback function requires fast data playback and easy operation;
·The test bench has the function of setting relevant alarm values, complete underlying protection, and complete alarm information;
·Collecting signals can produce curves based on time;
·All collected data can be automatically saved by time;
·Set flexible and adjustable test sequences and test items;
·The test sequence can be set and adjusted, and the test parameters can be adjusted;
·The ability to automatically complete online detection programs and generate detection reports;
·Can be applied to durability testing of oil pumps;
·The control system is compatible with different testing programs and can be freely accessed;
·Under the premise of system security conditions, the control parameters can be changed, and there are two control modes: manual and automatic;
·High speed signal acquisition.
