1. Product categories and key parameters used for testing or production of equipment
·Dual clutch offline test bench:
Product category: Automotive clutch assembly (EOL testing).
Key parameters:
Maximum torque: 330 Nm
Maximum speed: 5000 rpm
·8-speed longitudinal automatic transmission test line:
Product category: Vertical 8AT/8HT-500NM full range transmission.
Key parameters:
Transmission weight: ≤ 150 kg
Outer dimensions: 850mm × 500mm × 500mm
2. Main functions of the equipment
·Dual clutch offline test bench:
1. Automatically execute test sequences for torque transmission, drag torque, dynamic friction coefficient, etc.
2. Real time monitoring of multiple parameters (torque, speed, temperature, pressure, flow rate).
3. High precision closed-loop control (± 1 rpm speed accuracy, torque error<1%).
·8-speed longitudinal automatic transmission test line:
4. Support mixed production and quick switching of multiple models (750Nm, 1000Nm, etc.).
5. Automated assembly, testing, and quality traceability (QR code/barcode management).
6. Flexible logistics design (error prevention for edge material boxes and pickup sensors).
3. Parameters of the dynamometer for the equipment
·Dual clutch offline test bench:
Torque range: 0-330 Nm (peak)
O Speed range: 0-5000 rpm
Brand:
Drive motor: Siemens
§ Torque sensor: HBM/KISTLER (first 7 digits of model: HBM/KIS）

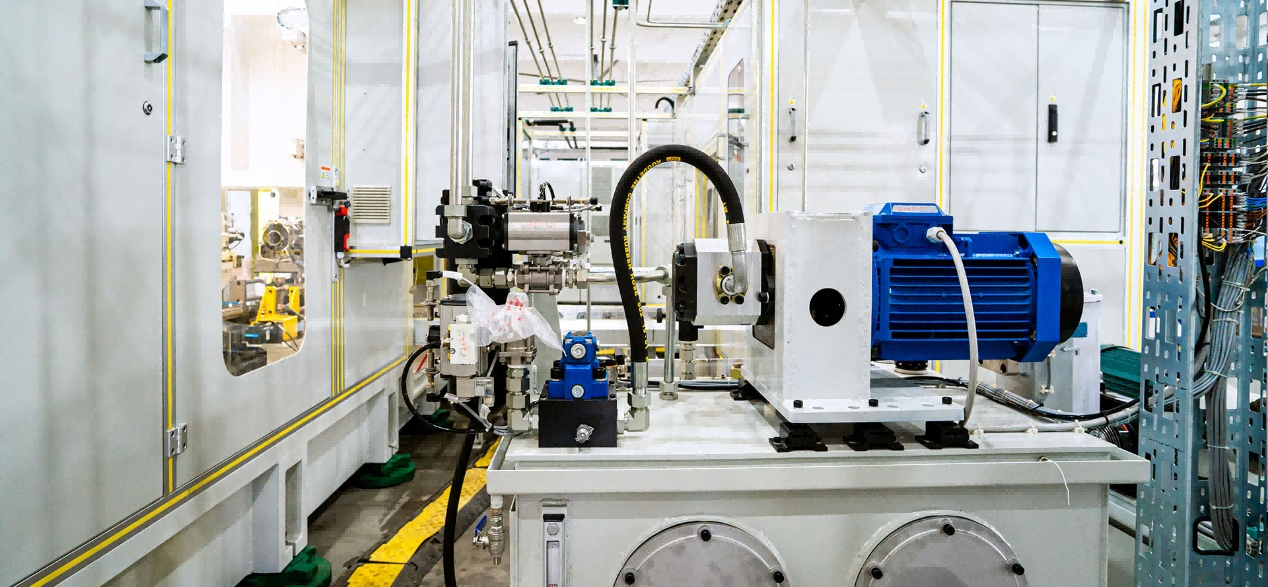

·8-speed longitudinal automatic transmission test line:
Note: There is no traditional dynamometer, the core testing equipment is:
Hydraulic/Pneumatic Control System: Brand Schneider/SMC
PLC Controller: Brand Siemens (S7-1500)
4. Information on production capacity, pace, etc
·Dual clutch offline test bench:
Daily production capacity: not clearly indicated, but supports quick changeover (single testing cycle can be optimized).
·8-speed longitudinal automatic transmission test line:
Annual production capacity: 50000 units
O Beat: 245 seconds/piece
Assembly line operating rate: 85%
5. Other core features of the device
·Dual clutch offline test bench:
1. Energy feedback energy-saving system: adopting AC energy feedback technology, only supplementing frictional loss power.
2. Modular and intelligent design:
O Support quick changeover (changing fixtures to adapt to different clutches).
Integrate PLC (Siemens S7-1500) and industrial computer (Advantech), supporting real-time data visualization and automation control.
3. High reliability safety protection:
Dual circuit grounding protection (strong current<3 Ω, signal line<1 Ω).
Multi level alarm mechanism (overload, overvoltage, temperature exceeding limit, etc.).
·8-speed longitudinal automatic transmission test line:
4. Proactive error prevention and flexibility:
Automated inventory of materials at the edge of the production line to prevent misidentification of incorrect or missing items.
Reserve interfaces for new models to support Party A's independent expansion of functions.
5. High quality traceability:
Full lifecycle QR code management, binding test data with production batches.
6. High compatibility design:
The load-bearing capacity of the wire body is compatible with 750Nm/1000Nm models.
Seamless integration with MES system, supporting remote monitoring and data exchange (PROFINET protocol).
